1.Samsung Exynos 5260(ROM 2GB)
2. Layar sentuh kapasitif LCD 10,1" 1024x768
3. Memori Internal 64GB yang andal
4. Sistem Operasi Android untuk boot-up cepat dan multitasking
5. Kombinasi yang kuat dari pemrograman kunci/semua diagnostik sistem/layanan pemeliharaan tingkat lanjut
6. Mode Cerdas untuk pembelajaran kunci terpandu dan otomatis
7. Mode Pakar untuk pembelajaran kunci tingkat lanjut
8. Baca PIN/CS (semua kunci hilang), pembuatan kunci, pembelajaran kunci, pembelajaran jarak jauh
9. Reset/adaptasi IMMO ECU, penyegaran/pengkodean
10. Baca/tulis transpronder, baca/tulis EEPROM/MCU
11. Diagnostik tingkat OE yang kuat untuk lebih dari 80 merek dan model AS, Asia, dan Eropa
12. Layanan pemeliharaan tingkat lanjut termasuk pembelajaran ulang ID sensor EPB, DPF, SAS, Reset oli, BMS, dan TPMS
OS | Android™ 4.4.2, KitKat |
Processor | Samsung Exynos hexa-core Processor (1.3GHz Quad-core ARM Cortex-A7 + 1.7GHz Dual-core ARM Cortex-A15) |
Memory | 2GB RAM & 64GB On-board Memory |
Display | 10.1-inch LED capacitive touch screen with 1920x1200 resolution |
Connectivity |
Wi-Fi (802.11 a/b/g/n/ac) USB: 2.0 BT v.2.1 + EDR SD Card (Support up to 32GB) HDMI |
Sensors | Gravity Accelerometer, Ambient Light Sensor (ALS) |
Power and Battery |
15000 mAh 3.8 V lithium-polymer battery Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C |
Input Voltage | 12 V (9-24 V) |
Power Consumption |
6.5 W |
Operating Temp |
0 to 50°C (32 to 122°F) |
Storage Temp | -20 to 60°C (-4 to 140°F) |

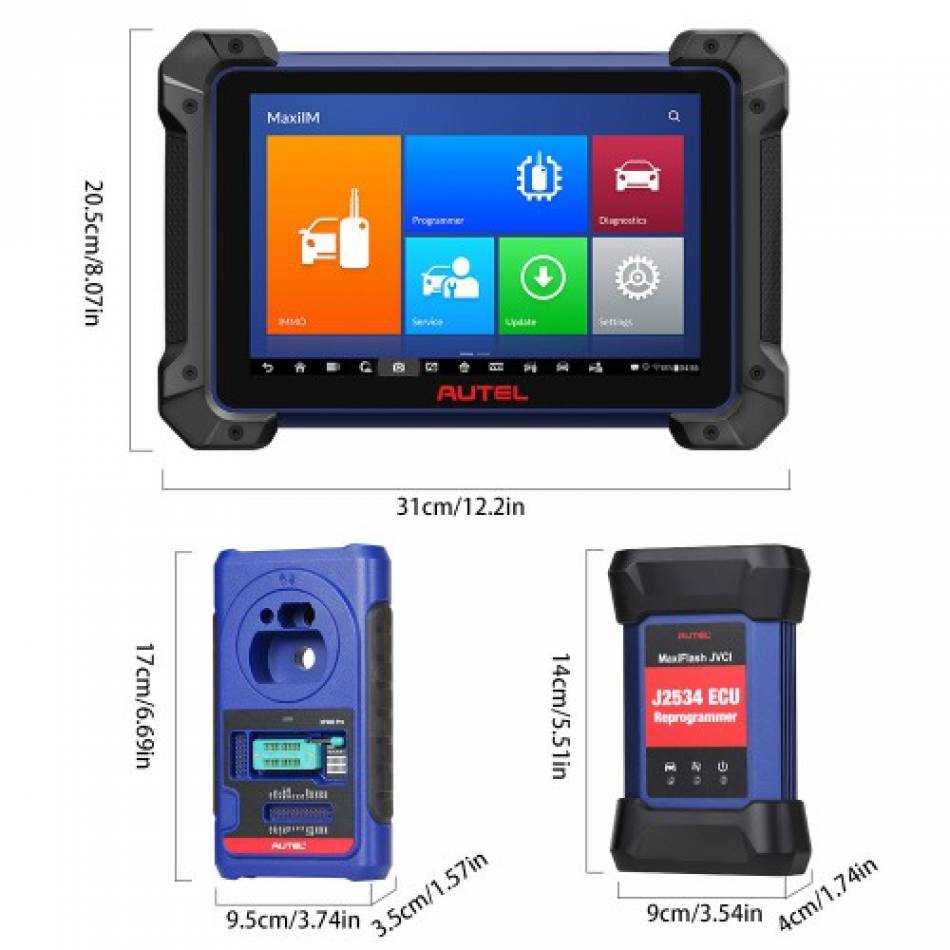

Dimensions (WxHxD) |
300 mm (11.81”) x 220 mm (8.66”) x 50 mm (1.97”) |
Weight |
NW: 1.42 kg (3.13 lb.) GW: 8.655 kg (19.08 lb.) |
Protocols
|
ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN |
Standard Functions ▲Need extra adapters △ Need XP400 Pro ○ Need XP400 Pro and extra adapters |
||
IM508 |
IM608 PRO |
|
Programming |
||
EEPROM Read/Write |
Basic |
Advanced |
MCU Read/Write |
Basic |
Advanced |
Immobilizer Read/Write |
|
Advanced |
Engine Read/Write |
|
Advanced |
Mercedes Infrared Key Read/Write |
△ |
|
Remote Frequency Detection |
△ |
|
IMMO |
||
Smart Mode(Guided and Automated Key Learning Function) |
|
|
Auto Detect Make/Model/Year/System |
|
|
Read PIN(Add Key/All Key Lost) |
|
|
Key Generation/Key Learning/Remote Learning |
|
|
IMMO ECU Reset/Adaption |
|
|
IMMO ECU Refresh/Coding |
|
|
Backup/Restore IMMO Data |
|
|
BENZ 3rd Generation IMMO Add Key, All Key Lost via OBD |
△ |
|
Read/Write/Erase Benz ESL_W209 / W906 Data |
○ |
▲ |
Benz OE NEC Key Learning |
○ |
▲ |
Volkswagen MQB Key Learning via OBD |
|
|
Volkswagen/Audi 4th Generation IMMO Key Learning |
|
|
Volkswagen/Audi 5th Generation IMMO Key Learning |
|
|
BMW FEM/BDC Key Learning and Adaption |
|
|
BMW CAS4/3/2/1 Key Learning |
|
|
BMW EWS3 Key Learning |
○ |
▲ |
2015-2019 Jaguar Land Rover Write Key via Dump |
△ |
|
Volvo Smart Key/Fobik Smart Key Learning |
△ |
|
Volkswagen/AUDI/BMW Key Unlock |
○ |
▲ |
OE-Level Diagnostics |
||
All Systems for Over 80 Makes |
|
|
MaxiFlash JVCI (J2534 ECU Reprogrammer) |
|
|
ECU Coding |
|
|
Active Test |
|
|
Complete Service Functions |
Basic |
Advanced |
Features |
||
Rechargeable Li-ion Battery |
5000 mAh |
15000 mAh |
Internet Updatable |
Wi-Fi |
Wi-Fi |
Multilingual Support |
|
|
Limited One Year Warranty |
|
|
Touchscreen |
7-inch |
10.1-inch |
Memory |
32GB |
64GB |
Processor |
Quad-core |
Hexa-core |
Camera |
8.0 Megapixel |
|
Resolution |
1024x600 |
1920x1200 |
Note: XP400 Pro can be purchased separately.
Some listed functions are manufacture dependent. Constantly update MaxiIM for current vehicle coverage. Update software on a regular basis to get the latest tool features.
