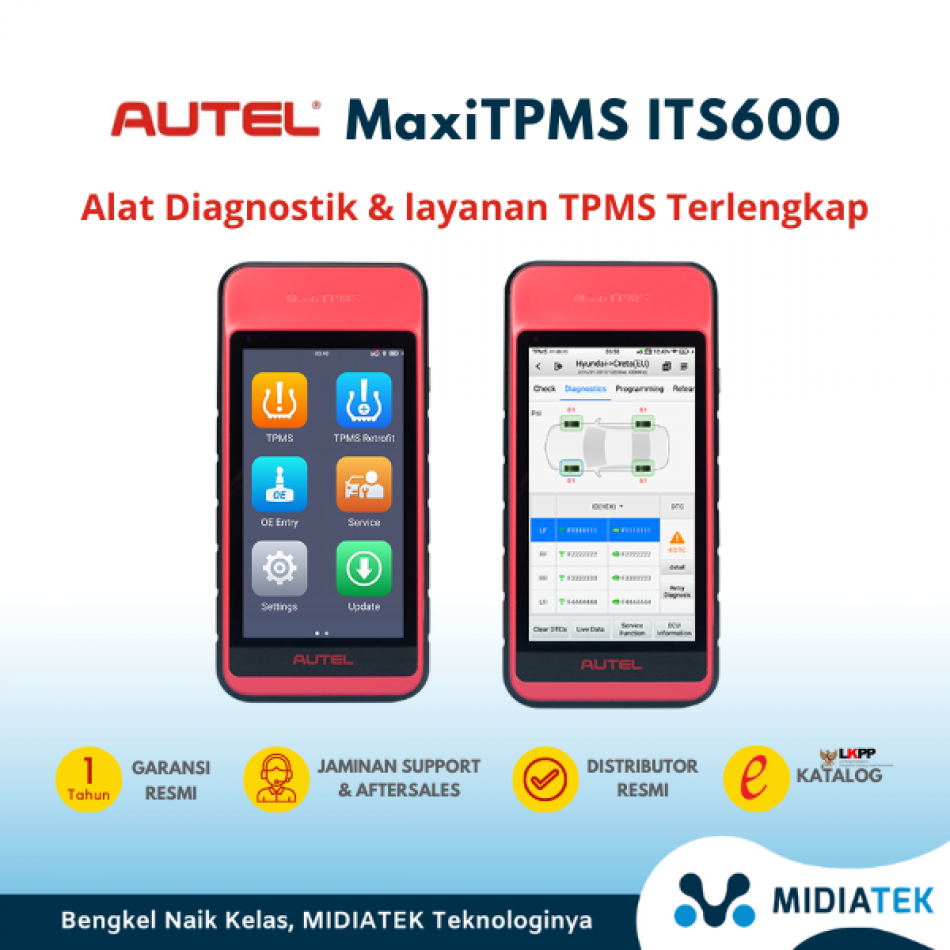

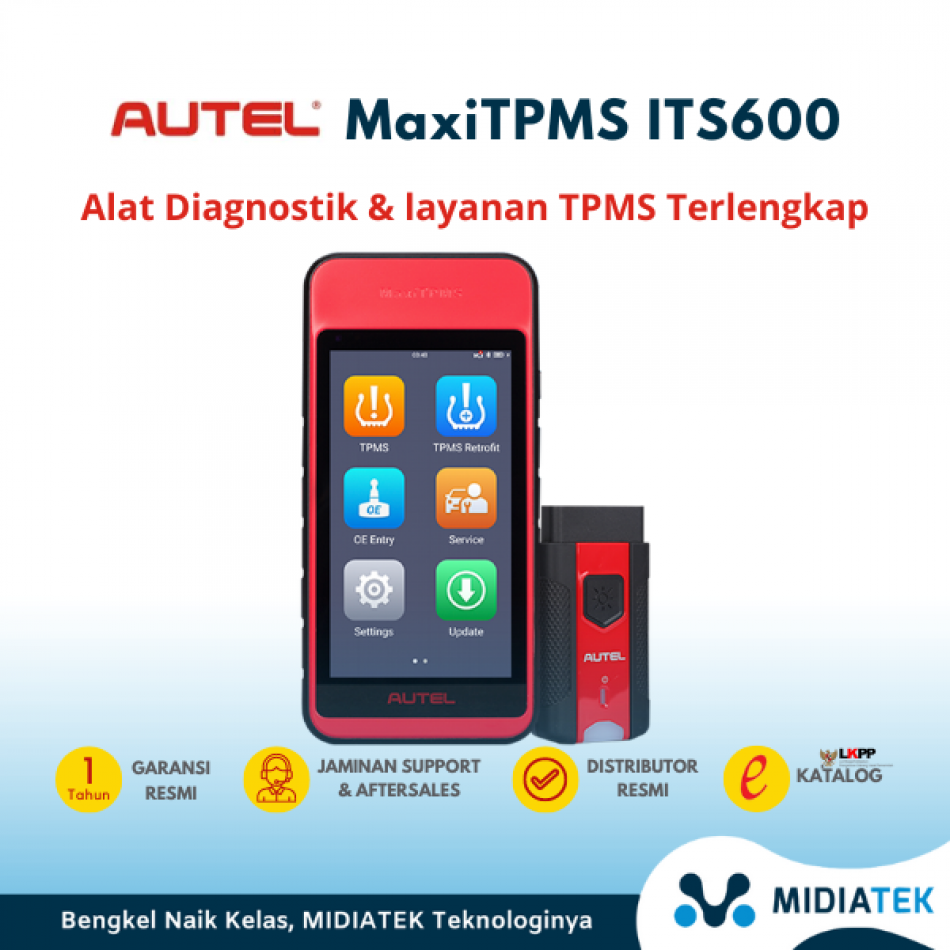

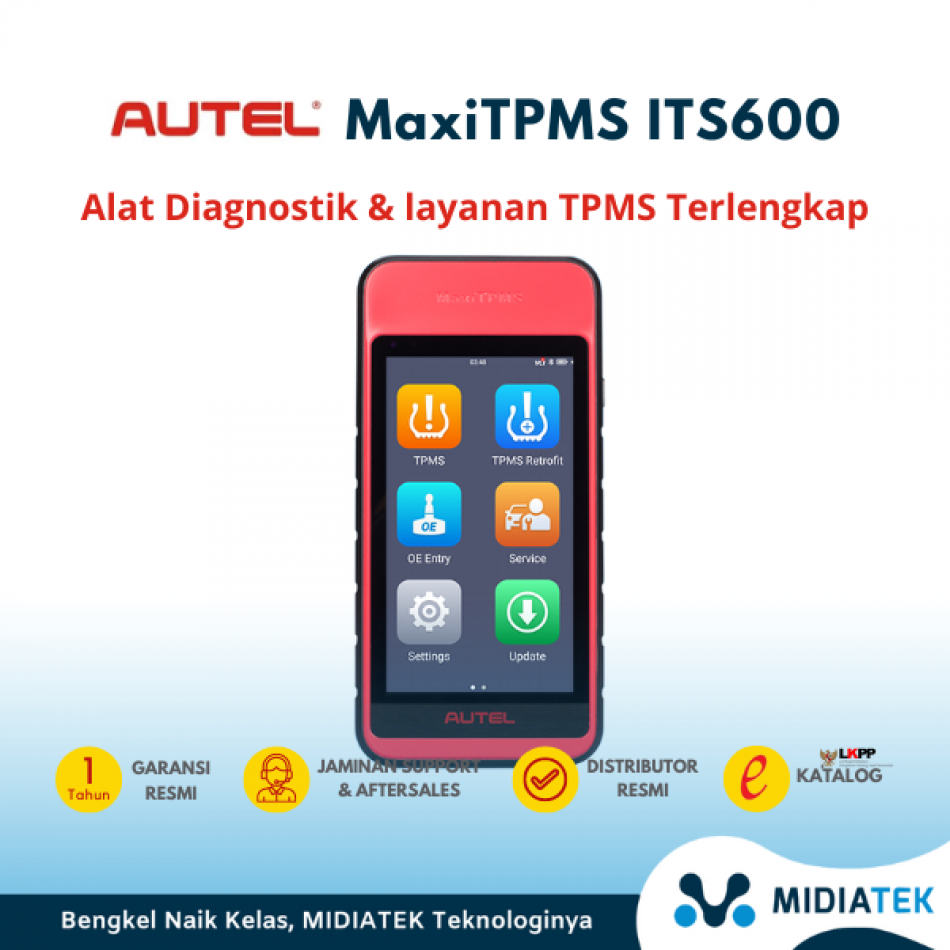

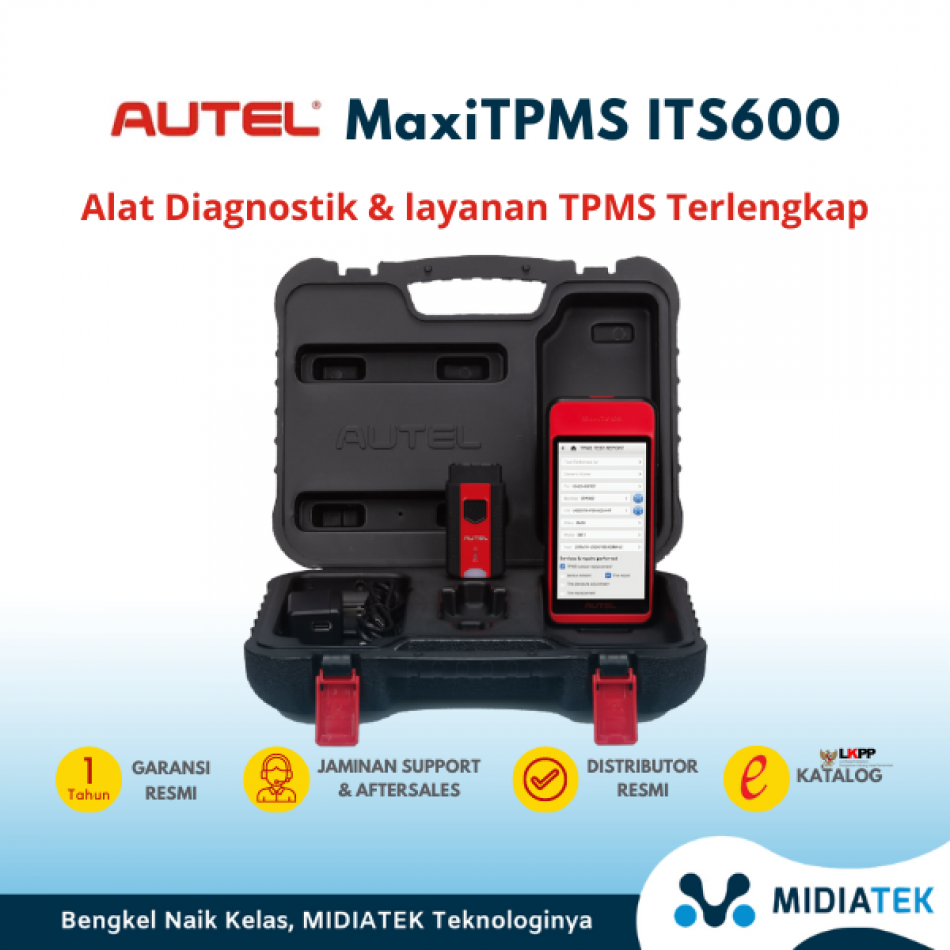

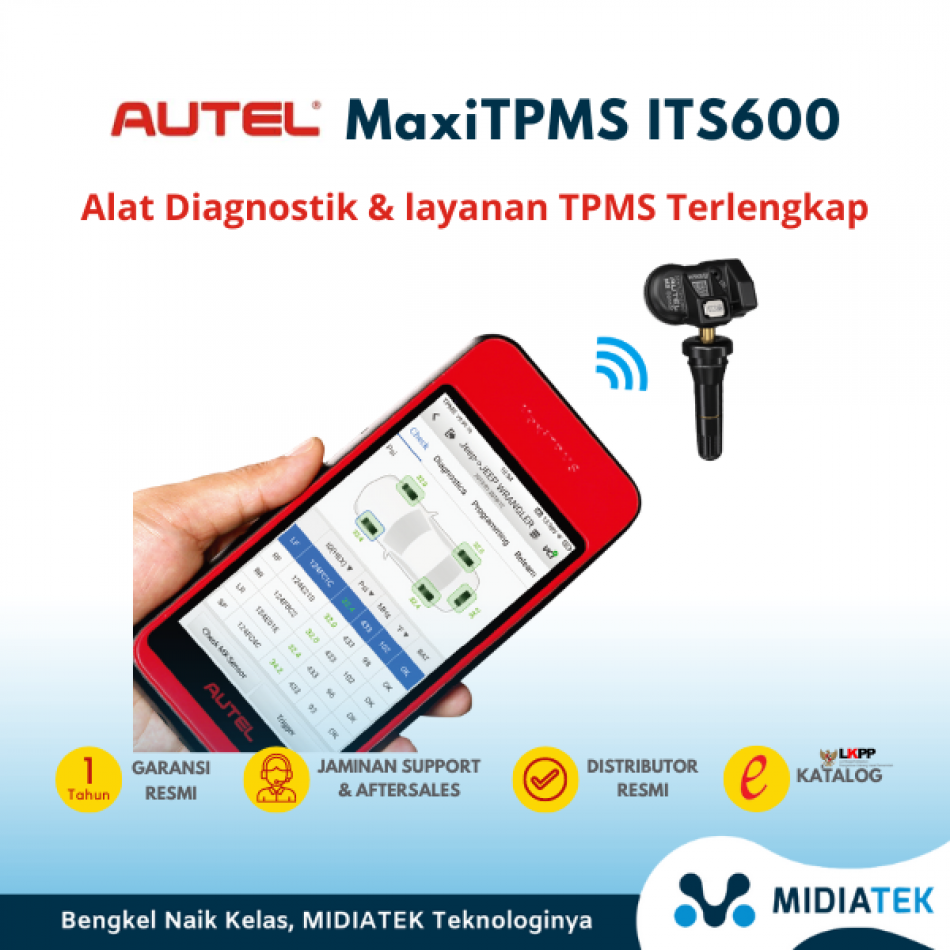

AUTEL MaxiTPMS ITS600 Alat Pemindai Diagnostik Bluetooth TPMS MaxiTPMS ITS600 adalah tablet nirkabel berbasis Android layar sentuh yang menawarkan diagnostik TPMS lengkap dan fungsi layanan. Tablet ini memiliki layar berwarna 5,5 inci dan antarmuka komunikasi kendaraan Bluetooth (VCI). Kompatibel dengan kendaraan yang dilengkapi TPMS di AS, Asia, dan Eropa, ITS600 dilengkapi layar status TPMS yang ditingkatkan, VINscan untuk identifikasi kendaraan cepat, empat opsi pemrograman MX-Sensor, fungsi pembelajaran ulang OBDII, dan instruksi pembelajaran ulang di layar untuk semua kendaraan. ITS600 dapat mengaktifkan, membaca dan mempelajari kembali semua sensor yang dikenal, melakukan diagnostik sistem TPMS dan empat layanan pemeliharaan umum. Selain itu, ia menyediakan pemindaian nomor DOT, pemberitahuan kedaluwarsa ban, dan akses ke pencarian penarikan. ITS600 kompatibel dengan alat Analisis Keausan Tapak Ban & Cakram Rem TBE200/TBE100, dijual terpisah. Dengan menyediakan rangkaian lengkap fitur dan fungsi terkait ban, ITS600 adalah pilihan ideal Anda untuk menyelesaikan pekerjaan TPMS dan kesehatan ban.

• Mengaktifkan, membaca dan mempelajari kembali semua sensor yang dikenal

• Layar status diagnostik sekilas yang ditingkatkan

• Pembelajaran ulang OBDII yang cepat untuk sebagian besar kendaraan

• Programkan Sensor MX untuk menggantikan 99% sensor OE

• Salin Dengan pemrograman sensor OBD untuk layanan lebih cepat

• Empat mode program MX-Sensor; program batch hingga 20 MX-Sensor

• Termasuk antarmuka komunikasi kendaraan Bluetooth nirkabel (VCI)

• Reset nilai plakat tekanan ban

• Baca/Hapus kode sistem TPMS & lihat data langsung

• Pembaruan perangkat lunak Wi-Fi gratis selama masa pakai alat

Recommended Use	Indoor
Operating System	Android™ 9.0
Processor	Quad-core processor (1.5 GHz)
Memory	2GB RAM DDR4 & 64GB ROM
Display	5.5-inch LCD capacitive touchscreen with 1280x720 resolution
Connectivity	• Wi-Fi • USB 2.0, Type C • BT
Sensors	Light sensor for brightness auto adjust
Audio input/output	Input: N/A Output: Beep
Power and Battery	• 3.8 V/5000 mAh lithium-polymer battery • Charges via 5 V AC/DC power supply
Battery Charging Input	5 V/2 A
Power Consumption	5V/1.5A
Power Consumption	600 mA (LCD on with default brightness, Wi-Fi on) @3.8 V
Operating Temp	-10 to 45°C(14 to 113°F)
Storage Temp	-20 to 60°C (-4 to 140°F)
Dimensions (W x H x D)	183.0 mm (7.2”) x 89.0 mm (3.5”) x 22.0 mm (0.87”)
Net Weight	368 g (0.8 lb.)
Protocols	ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610, GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.66

Comparison	ITS600	TS608	TS508-WF	TS508
TPMS & TIRE SERVICE
Worldwide Vehicle Coverage 99%, Always Up-to-date
Easy Vehicle Identification	(AutoVIN, VINscan, QR code/Barcode scan, Plate Scan, Manually select/input)	(AutoVIN, Manually select/input)	(Manually select)	(Manually select)
Activate, Read, Relearn All Known TPMS Sensors
Four Programming Options
Autel Sensor Batch Programming	(Up to 20 sensors)	(Up to 16 sensors)	(Up to 16 sensors)	(Up to 16 sensors)
OBDII Relearn / Automatic Relearn / Stationary Relearn
Relearn Procedure Guide
Exclusive TPMS Status Screen
Indicate sensor OE part number
Check MX-Sensor Information (ID, Battery, etc.)
Tire Pressure Placard Value Reset
Unlock TPMS ECU for old Toyota/Lexus, Integrated into OBD relearn
Test Remote Key Entry (RKE)
Read/Clear Codes for TPMS System
Special Functions (e.g. View Live Data for TPMS System)
DOT Scan, Tire Expiration Notice, Tire Recall Lookup		(Coming soon with Autel-cloud based app)
Test Report			(View on PC)	(View on PC)
TPMS Software Update	Free Update	Annual Update Fee	Free Update	Free Update

DIAGNOSTICS
All System Diagnostics & All Maintenance Service	Free OLS, SAS, BMS, EPB; Optional purchase of Pro Upgrade for All System Diagnostics & All Maintenance Service
Diagnostic Software Update	All System Diagnostics and Services updates is FREE for 1 Year with Pro Upgrade purchase. New software updates for these features will require a new ITS600 Pro Upgrade purchase.	Annual Update Fee

SOFEWARE
OPERATING SYSTEM	Android 9.0	Android 4.4

HARDWARE
Display	5.5 inch TFT LCD-touch, 1280x720	7 inch TFT LCD-touch, 1024x600	2.8 inch TFT LCD, 320×240	2.8 inch TFT LCD, 320×240
Camera	8 MP
Flash / RAM / SD	64GB / 1G; SD card up to 64G (Optional)	32G / 1G; SD card up to 32G (Optional)	16M / 3M	16M / 3M
Lithium-ion Battery	3.8V/5000mAh	3.7V/5000mAh	3.7V/3200mAh	3.7V/3200mAh
Vibration reminder, Microphone voice remote assistance
ACCESSORIES
Tread Depth & Brake Disc Wear Examiner TBE200 / TBE100	(Sold separately)
Thermal printer	(Sold separately)
